SteppIR Antennas   Tel: 425.453.1910 Fax: 425.462.4415
2112 116th Ave NE Suite 1-5   sales@steppir.com
Bellevue, WA 98004

    Quantity / Selection Unit Price (USD)
01811 80m Dipole for DB36
The 80m dipole option is a wire dipole that runs above and parallel to the boom, connects to the reflector element center on one side of the dipole and to the director 2 on the othert; The dipole is only -.7 dB below a full-sized dipole. Includeds an integrated antenna switch; when purchasing the 80m dipole, the end element truss kits are included.
$ 770.00
06023 40m/30m Base Load Coil for SmallIR Vertical
40/30m coil for SmallIR Mark III vertical antenna; Power output limited to 1500 watts on 40m and 30m, all other SmallIR bands are rated to 3KW continuous; Will only work with the Mark III verticals;

* May require new firmware chip (sold separately) for non-SDA100 Controllers.
$ 405.00
06025 80m/40m/30m Base Loading Coil for SmallIR Vertical
80/40/30m coil for SmallIR Mark III vertical antenna; Allows full coverage on the 80m, 40m and 30m bands; Power output limited to 500 watts on 80m, 40m and 30m, all other SmallIR bands are rated to 3KW continuous; Coil will only work on Mark III vertical;

* May require new firmware chip (sold separately) for non-SDA100 Controllers.
$ 470.00
  00711 Upgrade kit for existing antenna, 4E Yagi conversion to 40/30 loop dipole
This upgrade replaces the existing driven element for the 20m-6m yagi to create a dipole for 40m and 30m; It is offered for customers that have a 20m-6m Yagi already and want to replace the existing driven element with the 40/30 loop.

* May require new firmware chip and/or Element Return Bracket (each sold separately)
$ 665.00
06021 80m Base Loading Coil for BigIR Vertical
Attaches to base of the BigIR vertical, expanding coverage to 80m and 60m bands; Additional 4 wire cable required when adding this option; 4 lbs weight; Power limit for 80m and 60m 1.5 KW continuous, all other bands remain the same (3KW);

* May require new firmware chip (sold separately) for non-SDA100 Controllers.
$ 405.00
  Custom Quote Conversion
For payment data collection only. Price will be adjusted based on the amount in the custom quote.
$ 0.01
  00710 Upgrade kit for existing antenna, 3E Yagi conversion to 40/30 loop dipole
This upgrade replaces the existing driven element for the 20m-6m yagi to create a dipole for 40m and 30m, while maintaining three elements on 20m-6m; Element length 39 feet, turning radius remains the same, weight increases to 58 lb, wind load increases to 8.1 sq ft;

* May require new firmware chip and/or Element Return Bracket (each sold separately)
$ 665.00
01601 Element Truss Kit for 40/30 Loop - 2 ELEMENT or 3 ELEMENT Yagi
Element truss for loop element; Helps to level the loops for a better appearance; DOES NOT improve wind or ice load limits;
$ 114.00
06462 CrankIR Option - Pole Quick-Clamp Kit
Set of 9 Quick-Clamps in various sizes to allow easy set-up and take down of the 16 foot fiberglass pole without the need to tape the pole joints.
$ 16.00
06003 6m Passive Element - 3 Element Yagi
Single aluminum fixed length passive element creates a nicely spaced 4 el yagi on 6m band (50.000-50.300 Mhz); Improves performance to 10.1 dBi gain / 30dB front-to-rear;
$ 99.00
03222 12 conductor control cable, priced by the foot
12 conductor control cable, priced by the foot, no connectors; 22 AWG shielded; (For making a control cable with a connector for the SDA100 controller, be sure to also order 25 pin splice connector #03650)
$ 0.72
01501 Connector Junction Box - 2 Element, 3 Element, and UrbanBeam Yagi
Connector junction box allows the creation of individual plug ins from control cable to each element housing unit (EHU); Enclosed in a hinged, weatherproof box that mounts on the mast plate; includes 25 pin female connection for testing of antenna at installation site; GREATLY reduces chances for miswiring of antenna; Highly recommended;
$ 185.00
09607 High Wind Kit - 2 Element Yagi or 3 Element Yagi
Replaces existing mast plate and hardware with a double thickness (2 piece) mast plate, along with high strength/grip solid aluminum saddles;
$ 196.00
06002 6m Passive Element - 2 Element Yagi
Single aluminum fixed length passive element creates a nicely spaced 3 el yagi on 6m band (50.000-50.300 Mhz); Improves performance to 8.3 dBi gain / 20 dB front-to-rear;
$ 99.00
01321 Transceiver Interface Module - SDA100
Optional module; **FOR SDA100 MODEL CONTROLLERS ONLY** Installed inside the SDA100 controller, allows the antenna to automatically tune when transceiver changes frequency; Works with most modern transceivers; Requires interface cable;
$ 99.00
09139 SDA100 Replacement Driver Chip
SDA100 Replacement Driver Chip
for SDA100 Controllers only
$ 7.00
01322 Tuning Relay (transceiver lock out)
Tuning relay prohibits the transceiver from transmitting while the antenna is tuning; This optional module is installed inside the SDA 100 controller; Cable not included
$ 99.00
09130 Advanced Lightning Protection (ALP) Module (Replacement Part)
This module installs inside the SDA 100 controller and protects the sensitive electronics via disconnect with relays when not in use; Effectively disconnects the control wires from the controller; Will not protect while the antenna is adjusting; (Replacement part)
$ 249.00
01325 Remote Driver Board Kit (5 Elements)
The remote driver board allows the user to run control cable from the antenna to the bottom of the tower, and then run cat5 cable up to 900 feet from the remote driver board to the ham shack; This standalone module also has the Advanced Lightning Protection (ALP) module built into it; Must have power available at tower; Ideal for long distances from antenna to controller location; Compatible with DB42
$ 319.25
01324 Remote Driver Board Kit (1-4 Elements)
The remote driver board allows the user to run control cable from the antenna to the bottom of the tower, and then run cat5 cable up to 900 feet from the remote driver board to the ham shack; This standalone module also has the Advanced Lightning Protection (ALP) module built into it; Must have power available at tower; Ideal for long distances from antenna to controller location.
$ 299.00
06112 Line Filter / Voltage Suppressor - 2 and 3 ELEMENT
Line filter (12 wire) for filtering ESD and other unwanted voltages from the control cable; Manufactured by Array Solutions
$ 116.00
02101 Transceiver Interface Cable - ICOM
Connects your transceiver to the SDA 100 controller for automatic adjustment of antenna when you change frequencies (requires 01321 transceiver interface); ALL cables are the same for Icom; Cable S01
$ 25.00
Transceiver Interface Cable - Yaesu
Connects your transceiver to the SDA 100 controller for automatic adjustment of antenna when you change frequencies (requires 01321 transceiver interface) Yaesu uses either the S12, S13, S18 or S19 cable, you can select specific rig on the next page      of order form;
$ 25.00
Transceiver Interface Cable - KENWOOD
Connects your transceiver to the SDA 100 controller for automatic adjustment of antenna when you change frequencies (requires 01321 transceiver interface); Kenwood takes either the S12, S15 or S18 cable, you can select specific rig on the next page of order form;
$ 25.00
09128 SDA 100 Controller w/ 24v power supply
SDA100 electronic controller, manual operation with 24v power supply; does not include any options for controller;
SDA 100 basic controller; USB connection for uploading software via computer; Separate 180 deg, bi-dir and normal buttons; isolated driver chips for better static/near incident protection; Options available for SDA 100: Transceiver Interface (cable required), Tuning Relay (amplifier lockout), Advanced Lightning Protection (ALP) module.
$ 499.00
Transceiver Interface Cable - OTHER MODELS
Connects your transceiver to the SDA 100 controller for automatic adjustment of antenna when you change frequencies (requires 01321 transceiver interface) Cable types for these radios vary, you can select specific rig on the next page of order form;
$ 25.00
02114 Y Connector for SDA 100 Transceiver Interface
''Y'' cable is used to connect a computer logging program, transceiver and the SDA 100 to one singular communication port; The Y cable is not necessary with Icom Radios; Must be used with Transceiver Interface Module and radio-specific Interface Cable (each sold separately).
$ 46.00

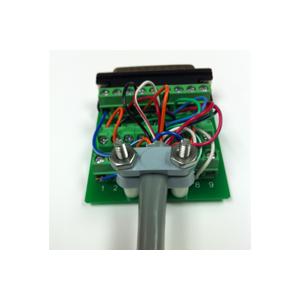

03650 25 pin Cable End Solderless Connector
Controller cable splice; 25 pin dsub to 25 slot terminal strip header; use with control cable to connect cable to the electronic controller (SDA100 or Original)
$ 25.00
  03122 4 conductor cable, priced by the foot
4 conductor control cable, priced by the foot, no connectors; 22 AWG shielded; (For making a control cable with a connector for the SDA100 controller, be sure to also order 25 pin splice connector #03650)
$ 0.37
09001 24v Power supply
Standard 24v power supply for control cable runs less than 200 feet. Not recommended for use with antennas utilizing 40/30m Loop Elements.
$ 41.00
09002 33v Power supply
The 33v power supply is required for control cable runs of 200 feet or more or antennas utilizing one or more 40/30m Loop Elements; This is a new purchase price, not the upgrade option available at purchase.
$ 75.00
09216 Fernco Quick Disconnect Boot/Coupler
1.5'' x 1.25'' replacement coupler for connecting the telescoping poles to the EST Tube; Works for connecting all antennas; Not required for new antenna purchases (included);
$ 8.00
03422 2x4 Wire control cable
2x4 wire control cable is used when one of the coil options is purchased for the BigIR or SmallIR Vertical. It consists of 2x 4 wire cable, 22 awg shielded, for NON burial outdoor applications.
$ 0.72

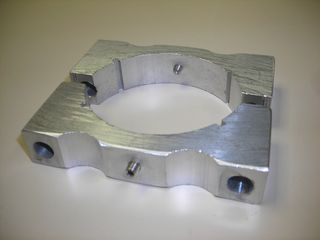

09532 1.75'' Heavy duty extruded solid aluminum saddle
1.75'' Heavy duty extruded solid aluminum saddle; Superior torque strength over traditional U-bolt type designs; 250 ft lb gripping torque; includes two set screws; No backing plate required; Bolts/nuts not included; hardware not included; quantity   discounts available with 10+ sets
$ 21.00
09533 2'' Heavy duty extruded solid aluminum saddle
2'' Heavy duty extruded solid aluminum saddle; Superior torque strength over traditional U-bolt type designs; 250 ft lb gripping torque; includes two set screws; No backing plate required; Bolts/nuts not included; hardware not included; quantity discounts available with 10+ sets
$ 21.00
01504 Connector Junction Box DB18/DB18E and DB11
Connector junction box allows the creation of individual plug ins from control cable to each element housing unit (EHU); Enclosed in a hinged, weatherproof box that mounts on the mast plate; includes 25 pin female connection for testing of antenna at installation site; GREATLY reduces chances for miswiring of antenna; Highly recommended for existing antennas;
$ 215.00
01602 Truss kit for 30/40 Dipole Loop - 4 Element Yagi
Element truss for loop element; Helps to level the loops for a better appearance; DOES NOT improve wind or ice load limits.
$ 114.00
  01603 Element Truss Kit - DB36 and DB42
Element trusses for the two loop elements (39 ft) located at opposites ends of boom; Helps to level the loops for a better appearance; DOES NOT improve wind or ice load limits;
$ 202.00
09534 2.25'' Heavy duty extruded solid aluminum saddle
2.25'' Heavy duty extruded solid aluminum saddle; Superior torque strength over traditional U-bolt type designs; 250 ft lb gripping torque; includes two set screws; No backing plate required; Bolts/nuts not included; hardware not included; quantity   discounts available with 10+ sets
$ 21.00
03322 16 conductor control cable, priced by foot
16 conductor control cable, priced by the foot, no connectors; 22 AWG shielded; (For making a control cable with a connector for the SDA100 controller, be sure to also order 25 pin splice connector #03650)
$ 1.10
  00712 Upgrade kit for existing antenna, 2E Yagi conversion to 40/30 loop d
This upgrade replaces the existing driven element for the 20m-6m yagi to create a dipole for 40m and 30m; It is offered for customers that have a 20m-6m Yagi already and want to replace the existing driven element with the 40/30 loop.

* May require new firmware chip and/or Element Return Bracket (each sold separately)
$ 665.00
09535 2.5'' Heavy duty extruded solid aluminum saddle
2.5'' Heavy duty extruded solid aluminum saddle; Superior torque strength over traditional U-bolt type designs; 250 ft lbs gripping torque.
$ 21.00
06004 6m Passive Element - 4 Element Yagi
Two aluminum fixed length passive elements create a nicely spaced 6 el yagi on 6m band (50.000-50.300 Mhz); Improves performance to 13.0 dBi gain / 30dB front-to-rear;
$ 198.00
  06031 40m-6m Ground Mounted Radial Kit for Verticals
40m-6m band coverage for ground mounted installations; Each kit consists of four 16 awg insulated wires 16 ft in length each, terminated in a single ring lug; 3 sets of four wires (total of 12 radials) recommended as a minimum starting point for vertical antennas;
$ 29.00
  01606 DB18/DB18E Boom Truss Kit
Boom truss, provides additional support for added ice load improvement; Attaches to the existing antenna mast, 30'' above boom;
$ 114.00
  01502 Connector Junction Box - 4 EL, DB36
Connector junction box allows the creation of individual plug ins from control cable to each element housing unit (EHU); Enclosed in a hinged, weatherproof box that mounts on the mast plate; includes 25 pin female connection for testing of antenna at installation site; GREATLY reduces chances for miswiring of antenna; Highly recommended for existing antennas;
$ 215.00
09536 3'' Heavy duty extruded solid aluminum saddle
3'' Heavy duty extruded solid aluminum saddle; Superior torque strength over traditional U-bolt type designs; 250 ft lb gripping torque; includes two set screws; No backing plate required; Bolts/nuts not included; hardware not included; quantity discounts available with 10+ sets
$ 21.00
03624 24 conductor control cable, by the foot
24 conductor control cable, priced by the foot, no connectors; 22 AWG shielded; (For making a control cable with a connector for the SDA100 controller, be sure to also order 25 pin splice connector #03650); Used on DB42 and on DB36 (only when 80m coil is ordered for DB36)
$ 1.50
  06033 80m-6m Ground Mounted Radial Kit for Verticals
80m-6m band coverage for ground mounted installations; Each kit consists of four 16 awg insulated wires 40 ft in length each, terminated in a single ring lug; 3 sets of four wires (total of 12 radials) recommended as a minimum starting point for vertical antennas;
$ 51.00
06008 6m Passive Element Kit DB18/DB18E
Single aluminum fixed length passive element creates a nicely spaced 4 el yagi on 6m band (50.000-50.300 Mhz); Improves performance to 10.1 dBi gain / 30dB front-to-rear;
$ 99.00
  01503 Connector Junction Box - DB36 Yagi WITH 80m DIPOLE
Same as 01502 except configured for optional 80m Dipole; Connector junction box allows the creation of individual plug ins from control cable to each element housing unit (EHU); Enclosed in a hinged, weatherproof box that mounts on the mast plate; includes 25 pin female connection for testing of antenna at installation site; GREATLY reduces chances for miswiring of antenna; Highly recommended for existing antennas;
$ 245.00

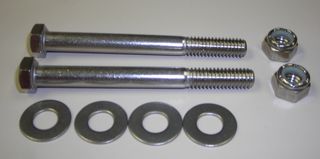

06500 Hardware kit, aluminum saddle, 3'' bolt length
Stainless steel hardware kit for aluminum saddle sets; includes two 5/16'' x 3'' hex head bolt, four 5/16'' flat washers and two 5/16'' Nylock nuts; (stock photo)
$ 4.00
  06032 Elevated Radials for Verticals (all models)
Two 16 awg insulated wires 32 ft long, terminated in a single ring lug; Requires one set of two per band, trimming of radial wires may be necessary; NOTE: These radial kits will work well for CrankIR owners that have NOT purchased the optional tunable radial kit.
$ 29.00
06501 Hardware kit, aluminum saddle, 3.25'' bolt length
Stainless steel hardware kit for aluminum saddle sets; includes two 5/16'' x 3.25'' hex head bolt, four 5/16'' flat washers and two 5/16'' Nylock nuts; (stock photo)
$ 4.00
06502 Hardware kit, aluminum saddle, 3.5'' bolt length
Stainless steel hardware kit for aluminum saddle sets; includes two 5/16'' x 3.5'' hex head bolt, four 5/16'' flat washers and two 5/16'' Nylock nuts; (stock photo)
$ 4.00
06503 Hardware kit, aluminum saddle, 3.75'' bolt length
Stainless steel hardware kit for aluminum saddle sets; includes two 5/16'' x 3.75'' hex head bolt, four 5/16'' flat washers and two 5/16'' Nylock nuts; (stock photo)
$ 4.00
06504 Hardware kit, aluminum saddle, 4'' bolt length
Stainless steel hardware kit for aluminum saddle sets; includes two 5/16'' x 4'' hex head bolt, four 5/16'' flat washers and two 5/16'' Nylock nuts; (stock photo)
$ 4.00
06505 Hardware kit, aluminum saddle, 4.5'' bolt length
Stainless steel hardware kit for aluminum saddle sets; includes two 5/16'' x 4.5'' hex head bolt, four 5/16'' flat washers and two 5/16'' Nylock nuts; (stock photo)
$ 5.50
06506 Hardware kit, aluminum saddle, 5'' bolt length
Stainless steel hardware kit for aluminum saddle sets; includes two 5/16'' x 5'' hex head bolt, four 5/16'' flat washers and two 5/16'' Nylock nuts; (stock photo)
$ 6.00
06011 Balun, 1:1 with SO239 Connection for Vertical or Dipole
5KW Choke balun in waterproof housing, with 2ea SO239 Connectors; Ideal for keeping RF from coming into the shack over the coaxial cable;
$ 77.00
06108 Line Filter, 8 Wires for Vertical or Dipole
Line filter (8 conductor) for filtering ESD and other unwanted voltages from the control cable; Manufactured by Array Solutions;
$ 98.00
  06116 Line Filter / Voltage Suppressor 16 WIRE
Line filter (16 wire) for filtering ESD and other unwanted voltages from the control cable; Manufactured by Array Solutions;
$ 135.00
09602 Guy Clamp/Hardware Kit for BigIR Vertical
Guy clamp and hardware kit for BigIR vertical; Only needed if an extra guy clamp is desired, this part comes with BigIR verticals when purchased new; Guy ropes not included;
$ 37.00
  09506 Vertical Mounting Post
1.50''x.125'' Wall Aluminum tubing, 24'' length; Use for mounting Bigir and SmallIR verticals;  Insertion end of mounting post is swaged to 1.48''; Only required if you need an additional one, we provide this piece with new purchases of SmallIR and  BigIR verticals;
$ 39.00
09520 1.75'' Stainless steel U-Bolt with Saddle
1.75'' Stainless steel U-bolt with saddle and hardware;
$ 12.87
09521 2'' Stainless steel U-Bolt with saddle
2'' Stainless steel U-bolt with saddle and hardware;
$ 13.20
09522 2.25'' Stainless steel U-Bolt with saddle
2.25'' Stainless steel U-Bolt with saddle and hardware;
$ 9.00
09523 2.5'' Stainless steel U-Bolt with saddle
2.5'' Stainless steel U-bolt with saddle and hardware;
$ 10.00
09524 2.75'' Stainless steel U-Bolt with saddle
2.75'' Stainless steel U-Bolt with saddle and hardware;
$ 11.00
99999 Can't find a part? Hand enter what you want!
Instructions for use: Select qty 1 in the box next to this text (column to right). Select any other items you wish to order on page one of this order form. Move to page two, where you will be prompted to enter in a message for part 99999. We will see this message when the order is submitted. $0.01 price is shown due to technical limitations.
$ 0.01
09213 Silicone wrap, black, 10 ft roll
10 ft roll of black silicon wrap; For use on final joint preparation for telescoping poles on SteppIR antennas; Also good for any application where UV protection is desired; Excellent in outdoor applications; Silicon wrap will only stick to itself, it is not an adhesive tape;
$ 6.00
09214 Silcone wrap, black, 20 ft
20 ft roll of black silicon wrap; For use on final joint preparation for telescoping poles on SteppIR antennas; Also good for any application where UV protection is desired; Excellent in outdoor applications; Silicon wrap willonly stick to itself,  it is not an adhesive tape;
$ 10.00
09211 3/4'' Black electrical tape
3/4'' outdoor electrical tape, MERCO brand; 66 ft roll;
$ 2.00
09201 18 foot telescoping fiberglass pole
18 foot telescoping fiberglass pole, 4 sections; 1.5'' OD at base section, 0.625'' OD at tip section; NOTE: If ordering as a standalone product (not replacing an element on a SteppIR antenna), please select NO FOAM option on next page of order form; Wind rating 100 mph;
$ 59.00

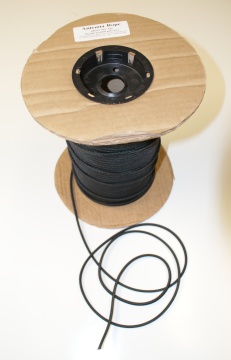

09543 3/16'' Braided polyester rope, black
3/16'' Braided polyester rope, black, price per foot;
$ 0.27
  03632 Heat Shrink Tube - 2.05in x 4in
Heat Shrink Tube for use with BigIR Extension Tube Couplers. Replaces old method of taping/wrapping the pole joints. Adhesive lined, highly UV resistant product.
$ 3.00
  03630 Heat Shrink Tube - 1.5in x 3in
Heat Shrink Tube for use with standard 18ft fiberglass poles. Replaces old method of taping/wrapping the telescopic pole joints. Adhesive lined, highly UV resistant product. Typical application requires 3 per pole.
$ 2.00
  10-1016-41 Gasket for BigIR 80M Coil
Gasket for the 80m coil - BigIR vertical; Not for the vertical itself, for that please use a 10-1502-01;
$ 8.00
10-1502-02 EHU Gasket for 40M housing
EHU Gasket for 40/30M & BigIR MK II(late version), III, IV vertical.
$ 7.00
10-1016-01 Gasket for 20m-6m EHU (Old-style)
Foam gasket, goes between the EHU housing and cover for a weatherproof seal; Must be changed whenever the lid is taken off the EHU;
$ 7.00
09212 1.5'' 3M Super 88 specialty electrical tape
1.5'' 3M Super 88 Electrical tape; 44 ft roll; Heavy duty for harsh conditions;
$ 18.50
06460 Replacement Telescoping pole 16 ft - CrankIR
16 ft telescoping pole, 23'' when collapsed, extremely portable; create custom heights by only using certain sections of pole; lightweight, heavy duty;
$ 45.00
09542 1/8'' Braided polyester rope, black
1/8'' Braided polyester rope, black, price per foot;
$ 0.18
0500X SteppIR T-Shirt
T-Shirt. Dark Blue, with Color SteppIR Logo. Choose M, L, XL, XXL, or XXXL size in next step
$ 17.00
05015 SteppIR Baseball Cap
6 panel low profile brushed cotton baseball cap; Sandwich style, navy blue on tan; Embroidered SteppIR logo in white and red; A great looking cap!
$ 17.00
SteppIR Premium Polo Shirt
Navy blue polo style shirt; Embroidered SteppIR logo. These are high quality shirts! Available in Large, XL and 2XL sizes. You will be asked to select a size on the next page of the order form. 05011-M 05012-L 05013-XL 05014-XXL
$ 25.00
Select your method of payment:
